Electrification System Conductor Rails Bus Bar 140A to 210A
Quick Details
•Standard length; 4m or 6m
•Current: 140A~210A
•Conductor material: copper
•Single powerline, easytrack, single flexline, multiline, boxline
Detailed Product Description
Type HFP busway mobile electrification system for indoor plants is manufactured in green plastic-housings for 4 and 5 poles. At up to 100 A we can supply the Powerail with plug-in joints. Otherwise, the sections are connected bolted joints.
Type KSLT for indoor and outdoor plants is manufactured in grey plastic-housings for 4 and 5 poles.
Compact arrangement, corrosion resistance and simple assembly are its essential features. T
Application

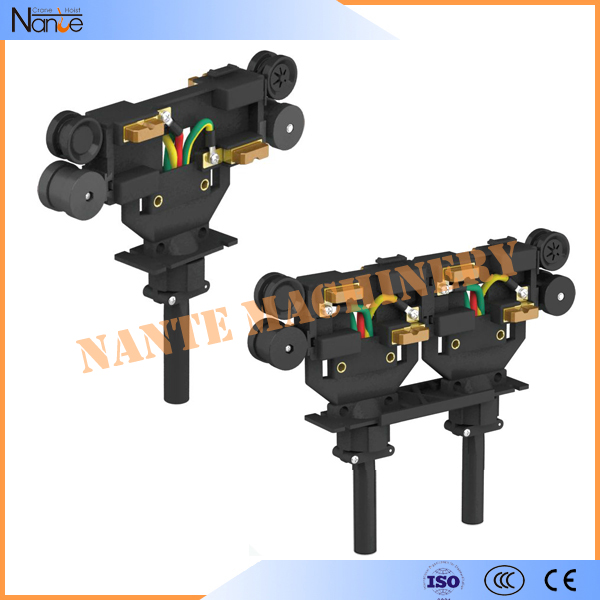

The ranges of applications of HFP Power Rail Enclosed electrification System
- Overhead and elongated tracks for cranes.
- Electric hoists, electric tools, stacking systems.
- Electric tools
- Other applications for supplying power to moving power load.
Design features
Compact arrangement, corrosion resistance and simple assembly are its essential features.
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.
Expansion during temperature fluctuation
Expansion joints are used when the Powerail length between feeds,curves,switches or other fix points is exceeding 20m.Install one expansion joint every 100m.
Anti-condensation sections
These sections are used for transfer of the Powerail to outdoor areas to avoid condensation.
The Powerail is not separated electrically.
Sectionalizing
Available as air gap version (5mm),where the collector carbon bridges the gap,e.g.for mains.
Also available as insulating piece version (35mm).In this case the insulating piece is longer than the carbon and each Powerail section can be separated electrically,e.g. for control.
Technical Parameters
Electrification System Conductor Rails Bus Bar 140A to 210A
| Model | Pole No. | Cross section | Max. current | Leakage-distance | Max. voltage | Resistance | Dimensions (H * W) | Weight |
| HFP56-4-35/140 | 4 | 35 | 140 | 33 | 600 | 0.522 | 73*56 | 2.95 |
| HFP56-4-50/170 | 4 | 50 | 170 | 33 | 600 | 0.337 | 73*56 | 3.25 |
| HFP56-4-70/210 | 4 | 70 | 210 | 33 | 600 | 0.265 | 73*56 | 3.85 |
| HFP56-4-80/240 | 4 | 80 | 240 | 30 | 600 | 0.223 | 73*56 | 4.16 |
| HFP56-3-10/50 | 3 | 10 | 50 | 45 | 600 | 1.656 | 73*56 | 1.95 |
| HFP56-3-15/80 | 3 | 15 | 80 | 45 | 600 | 1.137 | 73*56 | 2.13 |
| HFP56-3-20/100 | 3 | 20 | 100 | 45 | 600 | 1.011 | 73*56 | 2.24 |
| HFP56-3-25/120 | 3 | 25 | 120 | 45 | 600 | 0.713 | 73*56 | 2.37 |
| HFP56-3-35/140 | 3 | 35 | 140 | 45 | 600 | 0.522 | 73*56 | 2.63 |
| HFP56-3-50/170 | 3 | 50 | 170 | 45 | 600 | 0.337 | 73*56 | 3.02 |
| Electrical properties: | | Mechanical properties: |
| Max.current | 240A | Flexible strength | 75N/mm2±10% |
| Max.voltage | 660V | Tensile strength | 40N/mm2±10% |
| Dielectric strength | 30-40KV/mm | Temperature range: |
| Spec.resistance | 5 x 10150hm xcm | Standard Housing | -20C up to +70C |
| Surface resistivity | 10130hm xcm | High Temp. Housing | -10C up to +115C |
| Leakage resistance | CTI600-2.7 | Low Temp. Housing | -40C up to +80C |
| Combustibility: |
| Flame retardant | B1 | | |
| Self extinguishing | Class B1-no flaming particles,self-extinguishing | |
Resistance to chemicals: +45°C
Gasoline Sulphuric acid 50 %
Mineral Oil Caustic Soda25% and 50%
Grease Hydro-chloric acid, concentrated
|
.
